EXCB2-FER08-22-3-9CL

HOME > Products Information > Cables > External Control Cables > EXCB2 Series > EXCB2-FER08-22-3-9CL

EXCB2-FER08-22-3-9CL

Standard Product

Dedicated trigger cable for CD-VA Series.

Add to Watch List

Cable length	3 m
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)

Product Details Dimensions (mm) Pin Assignment Downloads

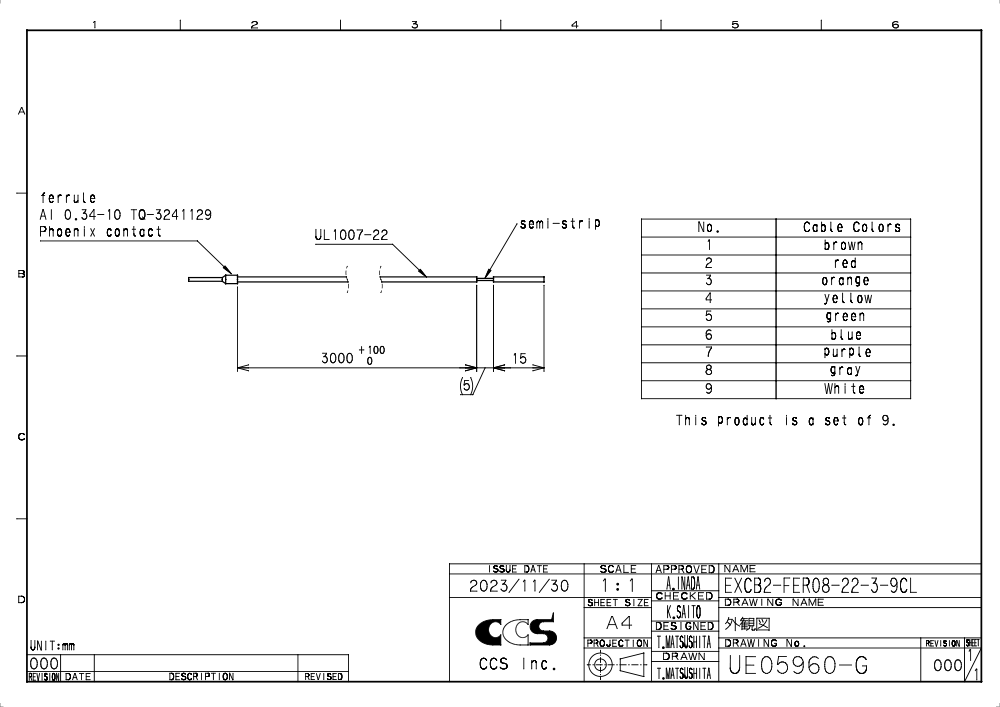

Dimensions (mm)

* Click to enlarge image.

Pin Assignment

Wire marker numbers	Wire color	Signal name
1	Brown	Trigger input 1
2	Red	Trigger input 2
3	Orange	Trigger input 3
4	Yellow	Trigger input 4
5	Green	Sequence reset input
6	Blue	Input COM
7	Violet	General-purpose output 1
8	Gray	General-purpose output 2
9	White	Output COM

Downloads

PDF Drawing	DXF Drawing
