LND2 Series
These Line Lights achieve high brightness which is equivalent to a fluorescent lamp while keeping the price down.
Highly uniform diffused light is irradiated.
Download Pamphlet PDF
Features
Suitable for all types of line sensor inspections
This Line Light achieves brightness equivalent to a fluorescent lamp while keeping the price down.
Emitting surface length
You can select from 101 mm, 201 mm, 301 mm, 401 mm, 501 mm, 603 mm, 703 mm, 803 mm, 903 mm, 1003 mm, 1103 mm and 1,203 mm.
For a custom order, we can create an emitting surface with a length with a 100 mm pitch.
LED color
For emitted LED color, we have a lineup consisting of:
Red and White Select your Light Unit based on the details of your inspections.
For a custom order, we can create LEDs that emit blue, green, IR, or UV.
Also perfect for replacing fluorescent lamps
LEDs have a long service life, so the bulbs don't burn out like fluorescent lamps, thus reducing costs for lamp replacement and work hours.
Comparison of service life between the LND2 (red) and a fluorescent lamp
Change in the amount of light from the LEDs and work hours for replacing fluorescent lamps
Applications
Foreign material inspection for clear film

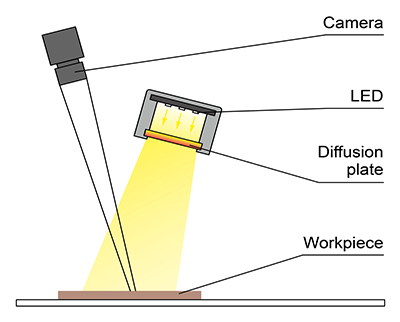

Example configuration
Provides diffused light with a high degree of uniformity by mounting LEDs with high density.
LND2 series
Characteristics/Data

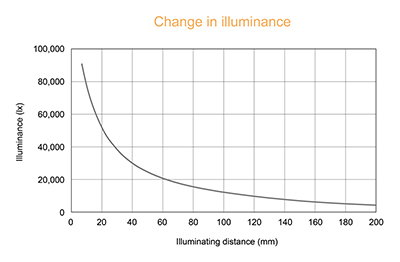

Data (Representative example)
※The graph included is for reference only. Actual values may vary.
LND2-600SW
LND2-300SW
LND2-300SW
LND2-900SW
LED properties
Spectral distribution
CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,
refer to here.
The data included is for reference only. Actual values may vary.
Custom Order Example
