LDLB Series

These Bar Lights have a built-in controller to switch between overdrive lighting and constant lighting, and are applicable for long-distance irradiation.

Download Pamphlet PDF

Features

Overdrive can illuminate even 3 m away

Just one Light Unit provides both constant lighting and overdrive lighting.

Can be connected in a daisy-chain

  • Connect up to three units
  • Centrally control the chain externally
  • Allows for illumination with a high degree of freedom

Applications

Inspections in automotive industry

Inspections in packaging industry

Inspections in foodstuff industry

Built-in Controller, 24 VDC input specifications

The Controller is built-in, so you don't need a Control Unit for light control. You can set intensity values and switch modes by panel operations.

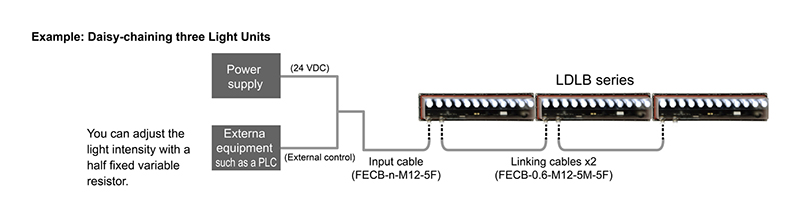

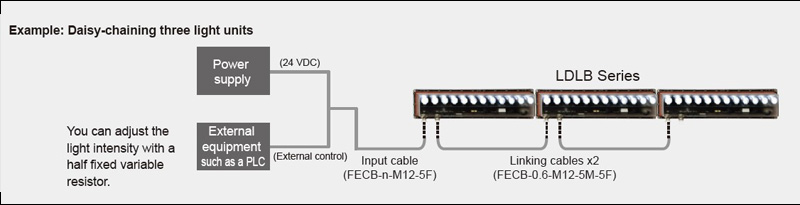

Example configuration

Bar Light with built-in Controller. Allows for long-distance illumination perfect for large workpieces. Switch to overdrive for even brighter illumination.

LDLB series

System configuration example

Characteristics/Data

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

LDLB-300RD-N (Red)

Common specifications

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and observe cautionary information.
The data included is for reference only. Actual values may vary.
