LDM2 Series

These Dome Lights provide unique heat-dissipating structure.
Diffused light is irradiated over the entire workpiece from a wide light-emitting surface.

Features

Light illuminated from the LEDs is transmitted through the light-guiding diffusion plate, and diffused light is illuminated evenly from a wide emitting surface to surround the whole workpiece.

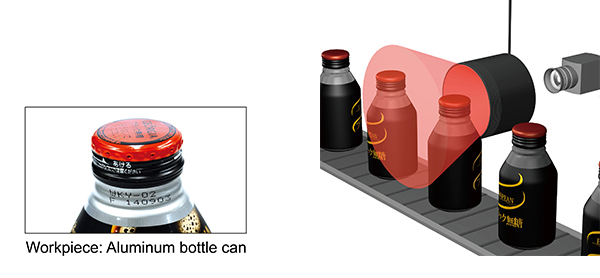

Example configuration

LDM2-90

Characteristics/Data

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

LDM2-50RD2

LED properties

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

We accept custom orders.

Please feel free to inquire.

  • Shape modifications
  • Brightness increases
  • Changes in wavelength, etc.

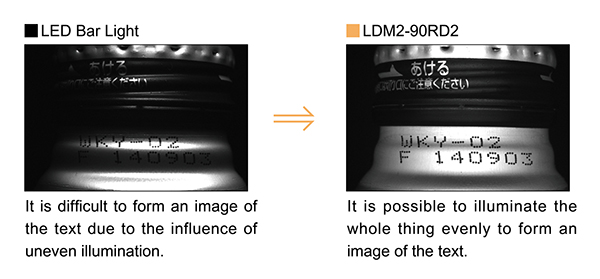

Imaging Example

Imaging oftext on an aluminum bottle can
