LKR Series

LEDs are embedded around a light-guiding diffusion plate.
Uniform light is radiated towards the center from a light-emitting surface arranged at an angle to the workpiece.

Features

LEDs embedded around a circular light-guiding diffusion plate.
Uniformly diffused light from an emitting surface angled with respect to the workpiece.

Example configuration

LKR-125

Characteristics/Data

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

LKR-70RD2

LED properties

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

We accept custom orders.

Please feel free to inquire.

  • Shape modifications
  • Brightness increases
  • Changes in wavelength, etc.

Imaging Example

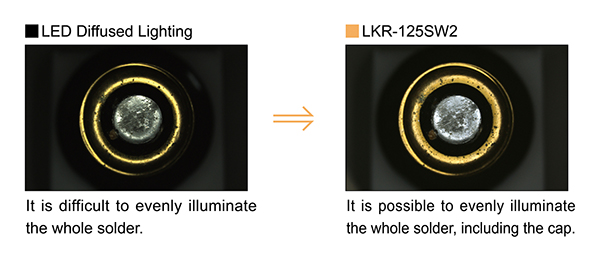

Imaging of soldering at the cap of a light bulb
