Testing Rooms
We Offer Free Access to Our Company's Testing Rooms That Are Fully Stocked with All the Equipment That You Need
"I want to evaluate the light, but don't have enough equipment."
In that case, use our company's testing room.
We can help you achieve the "optimal image" using our products in an environment equipped with all the necessary materials, such as cameras and lenses.
13 Domestic Testing Locations Available
Our company offers access to 13 Domestic testing locations (Hokkaido, Miyagi, Ishikawa, Saitama, Tokyo, Kanagawa, Aichi (Nagoya and Mikawa), Shiga, Kyoto, and Osaka). Customers can make use of these testing locations free-of-charge.
At these locations, customers will be able to get a first-hand look at our products, and we would be happy to work with our customers to provide them with the "ideal imaging" solution.
Procedure for Testing Room Usage

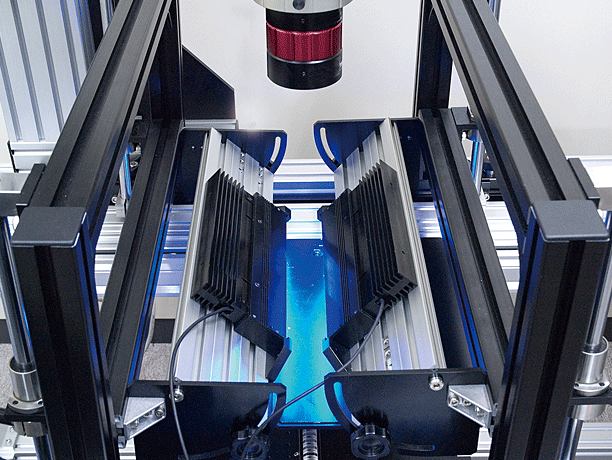

Line-Sensor Testing Rooms
We have testing rooms especially for Line Sensor Light.
We perform tests that nearly recreate your imaging environment. We suggest the lighting solution for getting optimal images using our LED Lights, Control Units, and options.
- ・For customers without line-sensor testing equipment who are concerned about workpiece testing
- ・Customers who want to bring in line cameras
It is also applicable to various other imaging environments.
Cylindrical sample test bench
Installation example
| Optical system (Lens) | Nikon Ai Micro-Nikkor 55mm f/2.8S Large format lens x 0.7 |
|---|---|
| Camera | 8,192 pixel line sensor camera |
| Test bench (Roller rotation test bench) |
Hardware image processing board |
| Revolution speed (circumferential speed) |
φ30 mm → 314 mm/s (5,000 Hz) max. φ40 mm → 418 mm/s (5,000 Hz) max. |
| Loading range | 6 kg max. |
| Resolution | 10 μm to 100 μm |
Flat sample test bench
Installation example
| Optical system (Lens) | Nikon Ai Micro-Nikkor 55mm f/2.8S Large format lens x 0.7 |
|---|---|
| Camera | 8,192 pixel line sensor camera |
| Image processing | Hardware image processing board |
| Uniaxial table | Stepping motor Stroke: 600 mm max, 50 mm/sec to 400 mm/sec |
| Resolution | 10 μm x 10 μm to 100 μm x 100 μm |
| Variety of setups | Direct light setup, diffused light setup, transmitted light setup |
In addition to the above, we have a wide variety of lenses and cameras. Please feel free to inquire.
