HLDL3 Series
High Power LED Lighting HLDL3 Series.
Bar lights for long-distance and wide-area irradiation.
Suitable for various applications such as large workpieces, long-distance illumination, and robot picking inspections.
- Up to 1.7 times brighter than the HLDL2 Series* to support faster inspection speed and higher resolution.
- The lineup has been expanded to 144 models for a wider range of applications.
- 12 sizes from 150 mm to 1800 mm (in 150 mm increments).
- Available in 4 wavelengths: red, white, blue, and infrared.
- In addition to wide and narrow light directivity, a medium directivity-type is now available.
- The housing is lighter and more compact than the current product for mounting on robot arms and inspection equipment.
- Custom orders are also possible such as different wavelengths and overdrive.
(*Wide type: 1.1 times greater than HLDL2, narrow type: 1.7 times greater)
Features / Imaging Comparison
Plentiful Lineup
Increased Brightness
conventional products (Size 300, White)
Narrow Type
Approx. 1.7 times higher
Comparison between HLDL3-300X28SW-DF-N and HLDL2-300X45SW-DF-N for LWD 1,000 mm.
Wide Type
Approx. 1.1 times higher
Comparison between HLDL3-300X28SW-DF-W and HLDL2-300X45SW-DF-W for LWD 300 mm.
* The increase in brightness varies depending on model. (These values are for reference only and are not guaranteed values.）

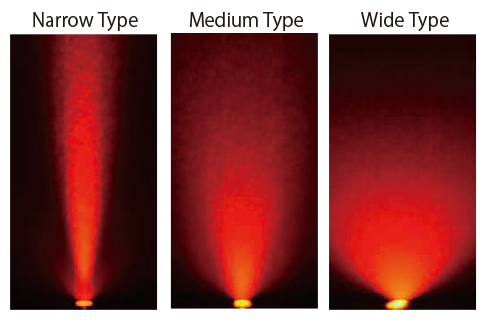

Three types of light directivity
Relative radiant intensity distribution by type (white)
Comparative graph of relative irradiance by type HLDL3-450X28SW (white)
Imaging Comparison (Light source for pastry picking)
Workpiece image : Baked pastries
| LWD(mm) | Narrow Type HLDL3-450X28RD-DF-N |
Medium Type HLDL3-450X28RD-DF-M |
Wide Type HLDL3-450X28RD-DF-W |
|---|---|---|---|
| 500 |  Shutter Speed:180μs Only central part of FOV illuminated. |
 Shutter Speed:550μs More widely illuminated than the narrow type, |
 Shutter Speed:2000μs Uniformly illuminated in the entire FOV. |
| 1,000 |  Shutter Speed:550μs More widely illuminated |
 Shutter Speed:2800μs Uniformly illuminated. |
 Shutter Speed:2800μs Insufficient quantity of light. |
| 2,000 |  Shutter Speed:900μs Uniformly illuminated in the entire FOV. |
 Shutter Speed:900μs Insufficient quantity of light. |
 Shutter Speed:900μs Insufficient quantity of light. |
* The shutter speed is changed to suit imaging. The shutter speed can be adjusted to brighten imaging of dark images.
* Field of view: 380 mm (H) x 317 mm (V)
Applications
- Exterior inspection of large workpieces
- Light source for robot picking
- Light source for logistics bar code reading
- Measurement of pressed parts punch dimensions
- Part sorting, inspection for model mixing
- Inspection for unmounted parts
Data
Data: Relative irradiance graph/uniformity (representative example)
The data included are for reference only. Actual values may vary.
HLDL3-450X28SW-DF-N (Narrow Type)
HLDL3-450X28SW-DF-M (Medium Type)
HLDL3-450X28SW-DF-W (Wide Type)
* Irradiance on the optical axis
*2 LWD : From the Light Unit to the workpiece
Spectral distribution
Lineup
| Model Name*1 | Input Voltage |
Power consumption | Weight | |
|---|---|---|---|---|
| HLDL3-150X28□□-DF-N | 24 V | 15 W | 350 g | |
| HLDL3-150X28□□-DF-M | 350 g | |||
| HLDL3-150X28□□-DF-W | 370 g | |||
| HLDL3-300X28□□-DF-N | 24 V | 30 W | 600 g | |
| HLDL3-300X28□□-DF-M | 600 g | |||
| HLDL3-300X28□□-DF-W | 620 g | |||
| HLDL3-450X28□□-DF-N | 24 V | 44 W | 910 g | |
| HLDL3-450X28□□-DF-M | 910 g | |||
| HLDL3-450X28□□-DF-W | 940 g | |||
| HLDL3-600X28□□-DF-N | 24 V | 59 W | 1,200 g | |
| HLDL3-600X28□□-DF-M | 1,200 g | |||
| HLDL3-600X28□□-DF-W | 1,240 g | |||
| HLDL3-750X28□□-DF-N | 24 V | 74 W | 1,510 g | |
| HLDL3-750X28□□-DF-M | 1,510 g | |||
| HLDL3-750X28□□-DF-W | 1,560 g | |||
| HLDL3-900X28□□-DF-N | 24 V | 88 W | 1,800 g | |
| HLDL3-900X28□□-DF-M | 1,800 g | |||
| HLDL3-900X28□□-DF-W | 1,860 g | |||
| HLDL3-1050X28□□-DF-N | 24 V | 103 W | 2,110 g | |
| HLDL3-1050X28□□-DF-M | 2,110 g | |||
| HLDL3-1050X28□□-DF-W | 2,180 g | |||
| HLDL3-1200X28□□-DF-N | 24 V | 117 W | 2,400 g | |
| HLDL3-1200X28□□-DF-M | 2,400 g | |||
| HLDL3-1200X28□□-DF-W | 2,480 g | |||
| HLDL3-1350X28□□-DF-N | 24 V | 132 W | 2,710 g | |
| HLDL3-1350X28□□-DF-M | 2,710 g | |||
| HLDL3-1350X28□□-DF-W | 2,800 g | |||
| HLDL3-1500X28□□-DF-N | 24 V | 147 W | 3,000 g | |
| HLDL3-1500X28□□-DF-M | 3,000 g | |||
| HLDL3-1500X28□□-DF-W | 3,100 g | |||
| HLDL3-1650X28□□-DF-N | 24 V | 161 W | 3,310 g | |
| HLDL3-1650X28□□-DF-M | 3,310 g | |||
| HLDL3-1650X28□□-DF-W | 3,420 g | |||
| HLDL3-1800X28□□-DF-N | 24 V | 176 W | 3,600 g | |
| HLDL3-1800X28□□-DF-M | 3,600 g | |||
| HLDL3-1800X28□□-DF-W | 3,720 g | |||
| Model Name*1 | Input Voltage |
Power consumption | Weight | |
- *1 □□in the model name contains the LED color. (RD: Red, SW: White, BL: Blue, IR: Infrared)
Options
Diffusion Plate
Suppresses the glare that arises when imaging glossy workpieces and enables change of light distribution angles.
Polarizing Plate
The surface reflection of the workpiece can be removed when used in combination with a polarizing filter.
Installation Bracket BK-HLDL3 Series
The illumination angle can be freely adjusted when fixing HLDL3 Series lighting.
Mounting Compatibility Bracket AD-HLDL3 Series
This bracket is used to install HLDL3 Series lighting (unit width: 44 mm) with the same method as HLDL2 Series lighting (unit width: 62 mm).
Extension Cables (custom example)
Cables can be custom ordered in accordance with customer requests. Feel free to contact us.
Example: FCB-F-n-ME7-SM3-OC4-branch cable which can connect a power source and four HLDL3 lighting units (SM connectors).
Custom orders are available as needed for number of branches, connector type,length changes, and so on.
| Model Name*1 | Polarizing Plate / Diffusion Plate / Bracket | Extension Cables | Recommended Control Units |
|---|---|---|---|
| HLDL3-150X28□□-DF-N | DF-HLDL3 Series PL-HLDL3 Series |
||
| HLDL3-150X28□□-DF-M | |||
| HLDL3-150X28□□-DF-W | |||
| HLDL3-300X28□□-DF-N | |||
| HLDL3-300X28□□-DF-M | |||
| HLDL3-300X28□□-DF-W | |||
| HLDL3-450X28□□-DF-N | |||
| HLDL3-450X28□□-DF-M | |||
| HLDL3-450X28□□-DF-W | |||
| HLDL3-600X28□□-DF-N | |||
| HLDL3-600X28□□-DF-M | |||
| HLDL3-600X28□□-DF-W | |||
| HLDL3-750X28□□-DF-N | |||
| HLDL3-750X28□□-DF-M | |||
| HLDL3-750X28□□-DF-W | |||
| HLDL3-900X28□□-DF-N | |||
| HLDL3-900X28□□-DF-M | |||
| HLDL3-900X28□□-DF-W | |||
| HLDL3-1050X28□□-DF-N | |||
| HLDL3-1050X28□□-DF-M | |||
| HLDL3-1050X28□□-DF-W | |||
| HLDL3-1200X28□□-DF-N | |||
| HLDL3-1200X28□□-DF-M | |||
| HLDL3-1200X28□□-DF-W | |||
| HLDL3-1350X28□□-DF-N | |||
| HLDL3-1350X28□□-DF-M | |||
| HLDL3-1350X28□□-DF-W | |||
| HLDL3-1500X28□□-DF-N | |||
| HLDL3-1500X28□□-DF-M | |||
| HLDL3-1500X28□□-DF-W | |||
| HLDL3-1650X28□□-DF-N | |||
| HLDL3-1650X28□□-DF-M | |||
| HLDL3-1650X28□□-DF-W | |||
| HLDL3-1800X28□□-DF-N | |||
| HLDL3-1800X28□□-DF-M | |||
| HLDL3-1800X28□□-DF-W | |||
| Model Name*1 | Polarizing Plate / Diffusion Plate / Bracket | Extension Cables | Recommended Control Units |
- *1 □□in the model name contains the LED color. (RD: Red, SW: White, BL: Blue, IR: Infrared)
- *2 Excluding infrared models.
- *3 Cables with a model name that ends with "-ME7","-EL2", "-PF", or "-PF-EL9" are not included.
- *4 Use two extension cables of the same length. if the two extension cables are of different lenghts, the different cable spacs may uneven light emission.
- Note:Please inquire if you would like to use in combination with a strobe control unit (overdrive type).
HLDR3 Series
HLDR3 Series ring lights are also available for wide-area and long-distance illumination.
- Three types of light directivity depending on the application conditions: narrow, medium, and wide.
- Available in 4 wavelengths: red, white, blue, and infrared.
- The housing is lighter and more compact than the current product for mounting on robot arms and inspection equipment.
Please refer to the series page for specifications and documents.
