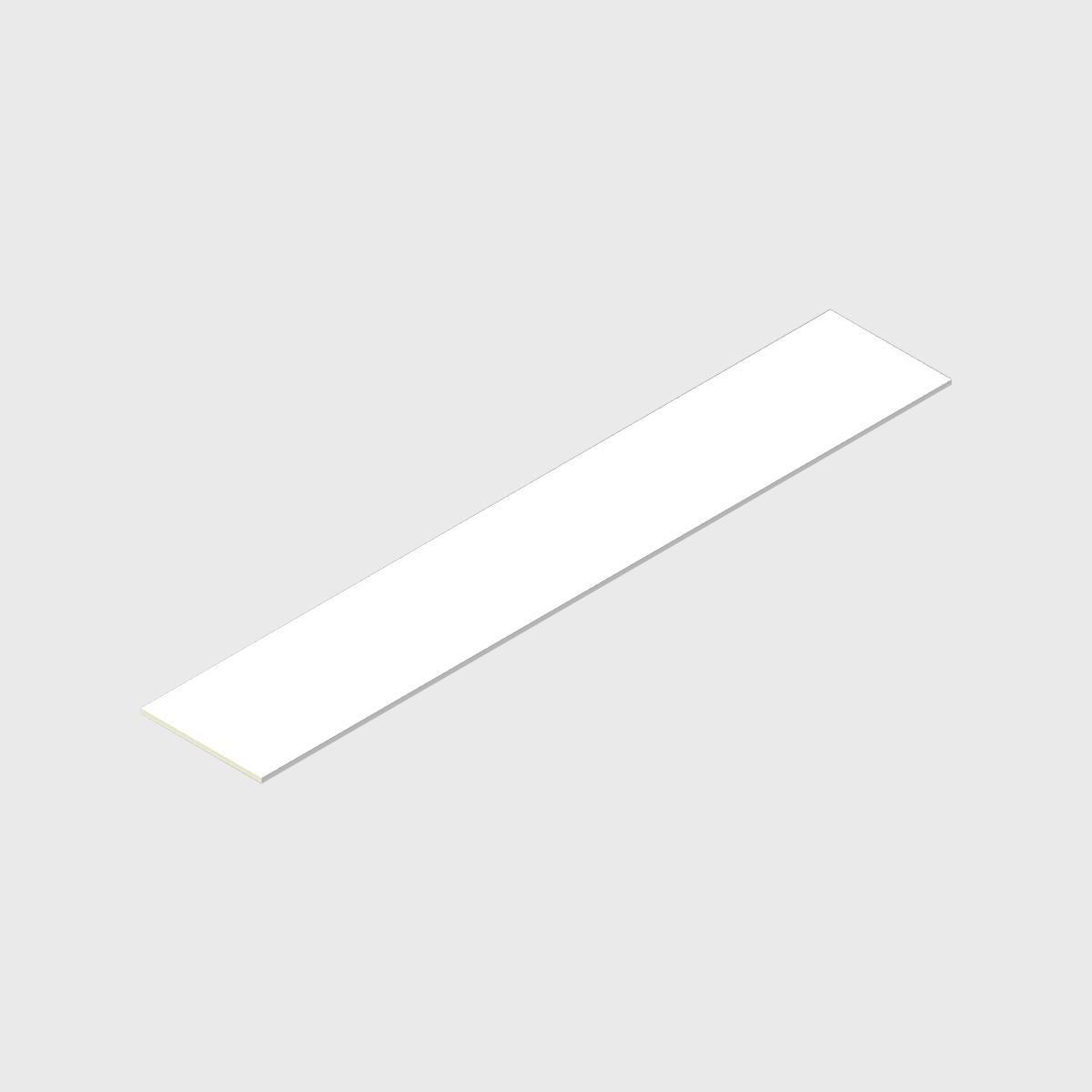

Diffusion Plates [for LB Series]

Diffusion plates for the LB Series.
This diffusion plate has a higher transmittance than the one that is built into the standard model light units at factory shipment.
You can replace the diffusion plate to adjust the light characteristics.
This is the same diffusion plate that is built into the high power model light units at factory shipment.

About product

Lineup

DF-LB Series model name
(n=200 to 2700)		 Applicable Light Units
DF-LB-nX50 LB-H-nX50 Series
LB-nX50 Series
DF-LB-nX100 LB-nX100 Series
DF-LB-nX150 LB-nX150 Series

Installation Method

Loosen the M2.6 screws and remove the panel, and then replace the diffusion plate.
Installation Method
For light units that have one light cable
Remove the panel on the side without the light cable.
For light units that have two light cables
Remove either one of the panels and replace the plate, being careful not to apply excessive force to the wires connected to the internal board.

Please note

When n ≥ 1000
The diffusion plate has a front side and a back side. Install it with the glossy, smooth side facing the LEDs.
When n < 1000
The diffusion plate is matte on both sides.
