Version Upgrade for CD-VA
This is the version upgrade tool for digital control units CD-VA Series software.
Please check the applicable software version before use.
Version Upgrade
Software Version
| Model Name | Software Version |
|---|---|
| CD-VA10024-2P | 41000722 |
| CD-VA10024-2PE | |
| CD-VA20024-4P | 41410722 |
| CD-VA20024-4PE |

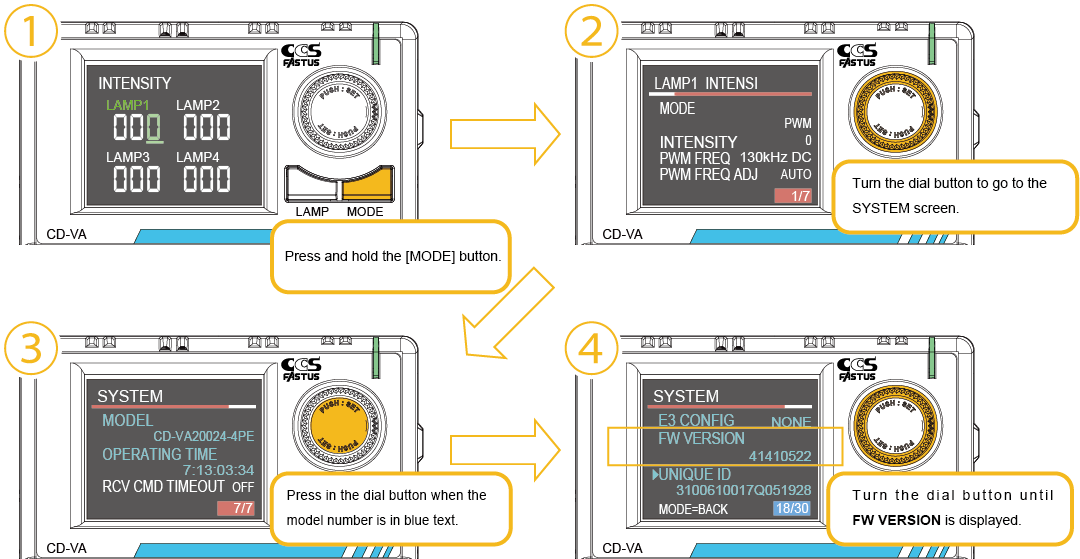

How to Check the Software Version
How to upgrade version
Download the Version Upgrade Tool from the Product Lineup at the bottom of the page.
Operate according to the manual in the file.
Notes
When upgrading the software version of a CD-VA that is being used in an operational facility or device, please verify that there are no problems before installing the new version to your facility or equipment.
