UV Irradiation Devices
CCS provides custom light fixture solutions that make use of UV-LEDs (ultraviolet LEDs) that are designed to meet various shape and usage requirements.
For everything from spot curing to area curing, we offer customization that will meet the needs of our customers.
- High output UV light fixtures that are capable of UV curing/ultraviolet curing
- Products capable of providing area curing type (wide range irradiation) UV lighting
- Customization that meets the needs of our customers
High Output Ultraviolet LED Light Fixtures That Are Capable of UV Curing
We offer high output ultraviolet light fixture solutions that are capable of ultraviolet curing for adhesive uses, etc.
Customers can choose between a peak wavelength of 365nm/385nm. In regards to other wavelengths, please inquire further.
Example of line-type product
Example of area-type product
New Solutions Provided by Area Cures (Wide Range)
You can use area and line lights to efficiently illuminate wide-range areas that are difficult to illuminate using spot lights.
The area cure serves to reduce man-hours as well as the number of Light Unit.
Custom Orders
Based on the technology we have accumulated producing Light Units for image processing, we can provide high-output UV-LED Lights that meet a wide variety of requirements.
To meet those requirements, we have our standard line and area type lights, and can provide any other shape or format by custom order.
Range Covered by CCS's UV-LED Lights
A beam of a 100 to 400 nm wavelength is a short ray of ultraviolet light with extremely strong energy.
CCS's UV-LED Lights can provide ultraviolet irradiation in the range of ultraviolet ray known as UV-A.
Please contact us if you require customization for wavelengths different from those shown here.
Customization Example
Area Irradiation Type High Output LED Light Fixtures
Characteristics
- Making use of a high output area irradiation light fixture, it provides batch irradiation that drastically reduces man-hours
- We provide area irradiation light fixture solutions that meet your specified requirements
- Featuring an adaptable design that makes use of the characteristics of its LEDs, this product can also be customized
- Using our proprietary optical simulations, we are able to offer solutions that will provide you with the ideal lighting environment
- By fully utilizing a variety of optical technologies, we also provide solutions that are capable of providing high output area irradiation at a long distance
- Customers can select from a peak light emitting wavelength of 365nm or 385nm
High Output Area Type Irradiation Light Fixtures That Can Be Used to Replace Existing Lamp Systems
Fan Air-Cooling Type
Based on our proprietary optical technology, we can propose the ideal solution that meets your desired irradiation distances, from short distance to long distance irradiation.
Production Example 1: φ221mm Area Irradiation Light Fixture
| Wavelength: | 365nm (385nm) |
|---|---|
| Cooling: | Forced fan air-cooling |
| Irradiation Surface Size: | φ221mm |
| Power Consumption: | 402W |
| Reference Irradiance: | 100mW/cm² ꞊ for LWD40mm |
Relative Irradiance Distribution LWD: 40mm
External Dimensions (mm)
Production Example 2: φ115mm Area Irradiation Light Fixture
| Wavelength: | 365nm (385nm) |
|---|---|
| Cooling: | Forced fan air-cooling |
| Irradiation Surface Size: | φ155mm |
| Power Consumption: | 384W |
| Reference Irradiance: | 150mW/cm² ꞊ for LWD5mm |
Relative Irradiance Distribution LWD: 5mm
External Dimensions (mm)
Water-Cooling Type
Provides high output area irradiation that is capable of UV irradiation over a wide area, which is difficult to achieve using spot irradiation lighting fixtures.
Since it provides light that doesn't contain heat rays (infrared rays), unlike typical lamps, it is ideal for irradiation of mediums that are weak to heat.
Fully utilizing our proprietary optical simulations, we can provide limitless customizations.
Production Example 1: 196×16mm Area Irradiation Light Fixture
| Wavelength: | 385nm (365nm) |
|---|---|
| Cooling: | Water-cooling |
| Irradiation Surface Size: | 196x16mm |
| Power Consumption: | 570W |
| Reference Irradiance: | 1,800mW/cm² = for LWD10mm |
Relative Irradiance Distribution LWD:4mm
External Dimensions (mm)
Production Example 1: 180×70mm Area Irradiation Light Fixture
| Wavelength: | 365nm (385nm) |
|---|---|
| Cooling: | Water-cooling |
| Irradiation Surface Size: | 180x70mm |
| Power Consumption: | 595W |
| Reference Irradiance: | 400mW/cm² = for LWD5mm |
Relative Irradiance Distribution LWD: 5mm

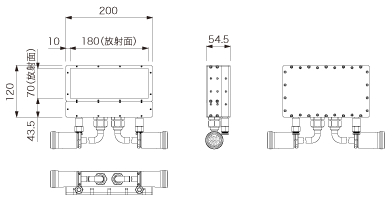

External Dimensions (mm)
See more details on Area Irradiation Type High Output LED Light Fixturesclose
Line Irradiation Type High Output LED Lighting Fixtures
Characteristics
- Making use of a high output line irradiation light fixture, it provides batch irradiation that drastically reduces man-hours
- We can handle custom orders to provide you with the desired irradiation length and irradiation width
- Capable of providing ultraviolet irradiation with high uniformity, which is difficult to achieve using spot irradiation light fixtures
- Based on our proprietary optical technologies, this product can also be used to perform irradiation at a distance
- Customers can select from a peak light emitting wavelength of 365nm or 385nm
Based on Our Proprietary Lens Design Our Line Type Irradiation Light Fixtures Are Capable of High Output Use
Long Type
We offer long line type light fixtures that are ideal for replacing UV lamps that are necessary for large-scale systems.
Featuring a compact and simple equipment configuration, these light fixtures boast excellent maintainability and help to drastically reduce man-hours.
We offer flexible solutions that can fit your desired range of irradiation.
Production Example 1: 1,800mm Line Irradiation Light Fixture
| Wavelength: | 385nm（365nm） |
|---|---|
| Cooling: | Forced fan air-cooling |
| Irradiation Surface Size: | 1,800mm |
| Power Consumption: | 707W |
| Reference Irradiance: | 700mW/cm² ꞊ for LWD10mm |
Relative Irradiance Distribution LWD: 10mm
External Dimensions (mm)
Production Example 2: 1,556mm Line Irradiation Light Fixture
| Wavelength: | 385nm（365nm） |
|---|---|
| Cooling: | Forced fan air-cooling |
| Irradiation Surface Size: | 1,556mm |
| Power Consumption: | 2,013W |
| Reference Irradiance: | 500mW/cm² ꞊ for LWD10mm |
Relative Irradiance Distribution LWD: 10mm
External Dimensions (mm)
High Output Type
We offer high output line light fixtures that can be used for a wide array of applications.
Compared to spot curing, line irradiation is highly efficient, and such products can be used to reduce the number of light fixtures installed, as well as to reduce man-hours, greatly contributing to cost reductions.
Production Example 1: 400mm Line Irradiation Light Fixture
| Wavelength: | 385nm（365nm） |
|---|---|
| Cooling: | Forced fan air-cooling |
| Irradiation Surface Size: | 400mm |
| Power Consumption: | 487W |
| Reference Irradiance: | 2,900mW/cm² ꞊ for LWD10mm |
Relative Irradiance Distribution LWD:10mm
External Dimensions (mm)
Production Example 2: 104mm Line Irradiation Light Fixture
| Wavelength: | 365nm（385nm） |
|---|---|
| Cooling: | Forced fan air-cooling |
| Irradiation Surface Size: | 104mm |
| Power Consumption: | 42W |
| Reference Irradiance: | 480mW/cm² ꞊ for LWD10mm |
Relative Irradiance Distribution LWD: 10mm
External Dimensions (mm)
Production Example 3: 255mm Line Irradiation Light Fixture
| Wavelength: | 365nm（385nm） |
|---|---|
| Cooling: | Forced fan air-cooling |
| Irradiation Surface Size: | 255mm |
| Power Consumption: | 403W |
| Reference Irradiance: | 1,200mW/cm² = for LWD10mm |
Relative Irradiance Distribution LWD: 10mm
External Dimensions (mm)
See more details on Line Irradiation Type High Output LED Light Fixturesclose
Spot Irradiation Type High Output LED Lighting Fixtures
Characteristics
- This model features a simple design that is focused on providing only the essential features
- By fully utilizing our proprietary optical technologies, it has been designed to achieve high output irradiation
- Customers can select from a peak light emitting wavelength of 365nm or 385nm
We offer high output spot irradiation light fixtures that are ideal for simplified irradiation.
Fully utilizing our optical technologies, we can propose a variety of solutions that meet your specified requirements, from short distance to long distance irradiation.
Production Example 1: HLV-24UV365-4WNRBT
| Wavelength: | 365nm（385nm） |
|---|---|
| Cooling: | Natural air-cooling |
| Irradiation Surface Size: | φ10mm |
| Reference Irradiance: | 820mW/cm² ꞊ for LWD5mm |
External Dimensions (mm)
Production Example 2: HLV-24UV365-4WPCLTL
| Wavelength: | 365nm（385nm） |
|---|---|
| Cooling: | Natural air-cooling |
| Irradiation Surface Size: | φ10mm |
| Reference Irradiance: | 3,000mW/cm² ꞊ for LWD10mm |
External Dimensions (mm)
See more details on Spot Irradiation Type High Output LED Light Fixturesclose
Dedicated UV-LED Power Supplies
Characteristics
- Small and compact, these units take up very little space when installed
- With a 64 step digital display, they are designed to support reproducibility for dimming values
- Capable of using an external signal to perform ON/OFF switching/dimming controls on the msec order
- Equipped with a LED burnout detection feature
External Dimensions (mm)
| Lighting Method | Constant lighting (constant-current system) |
|---|---|
| Number of Channels | 1 Channel |
| Dimming Switch | Rear-side MANUAL/REMOTE switch |
| Dimming | Internal: Panel-side volume knob (64 step) External: Parallel 6 bit (64 step) Possible to switch between internal dimming/external dimming using rear-side switch |
| Dimming Range | 25% typ. to 100% for both internal and external (lights up even if dimming is set to MIN) |
| Lighting Control | Internal: Panel-side ON/OFF switch External: Parallel 1 bit |
| Input Voltage (Rated) | AC 100-240V |
| Frequency | 50/60Hz |
| Counter Time/Dimming Value Display | 5 digit 7 segment green light display Display for total irradiation time (00000 to 99999 hrs), dimming value display (1 to 64) Display switching using front-side panel switch button Time counter can be reset by pushing and holding the ON/OFF switch, volume, and button in combination |
| Error Detection Display | While burnout is detected (short circuit/open) While error is detected (fan turned off, abnormal color temperature, connector disconnected) |
| External Dimming Input | 6 bit/photo-coupler input, electrical power at 16V or higher: Active, Electrical power at 7V or lower: InActive (maximum input voltage of up to 26.4V) Dimming response time of 10 ms or less |
| Light Control Input | Photo-coupler input, electrical power at 16V or higher: Active, Electrical power at 7V or lower: InActive (maximum input voltage of up to 26.4V) ON/OFF response time or 10ms or less |
| CE Markings | Compliant with Safety Standard EN61010-1 Compliant with EMC Standard EN61326 Class A |
| Environmental Regulations | RoHS compliant |
| Weight | 5,500g or less |
Based on the know-how and skills we have accumulated since our founding, CCS combines various elements, such as light wavelength, illuminating distance, and illuminating angle, to provide a "lighting solution" environment that is perfect for you.
