HSL-PCL Series
* High-Power Spot Lights.* For replacement of halogen.* Low power consumption and long lifetime.* High uniformity.* IP67 Compliant.
Lineup
Characteristics / Data
Common specifications
| LED color | Red, White, Blue, Green |
|---|---|
| Peak wavelength | Red: 645 nm typ., Blue: 470 nm typ., Green: 520 nm typ. |
| Power consumption | 2.8 W max. |
| PWM frequency | 125 kHz |
| Polarity & signal | 1: (+), 2: no connection, 3: (-), 4: (R) |
| Housing material | Aluminum |
| Weight | 400 g |
| Recommended LWD | 2,000 mm or less |
Dimensions (mm)

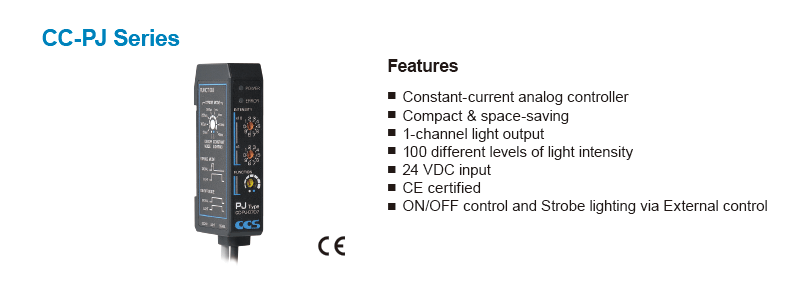

Recommended Controller
Refer to CC-PJ Series page for more details.
Extension Cables
