FCB-W-10

Custom Order

2-branch cable used to connect two 24 V input LED Light Units and a 24 V output Control Unit.
10-m length cable with 3-pin SM connectors.
One end of the cable branches into two 20 cm cables.
This cable is used to control multiple Light Units from one Control Unit (output connector).

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Add to Watch List

Cable length	10 m
Minimum bending radius (reference value)	49.2 mm
Connectors (Control Unit side)	SM connector (3-pin, plug)
Connectors (Light Unit side)	SM connector, 3-pin (socket) x 2
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Caution	The light intensity might be unstable if you join cables.

Product Details Dimensions (mm) Downloads

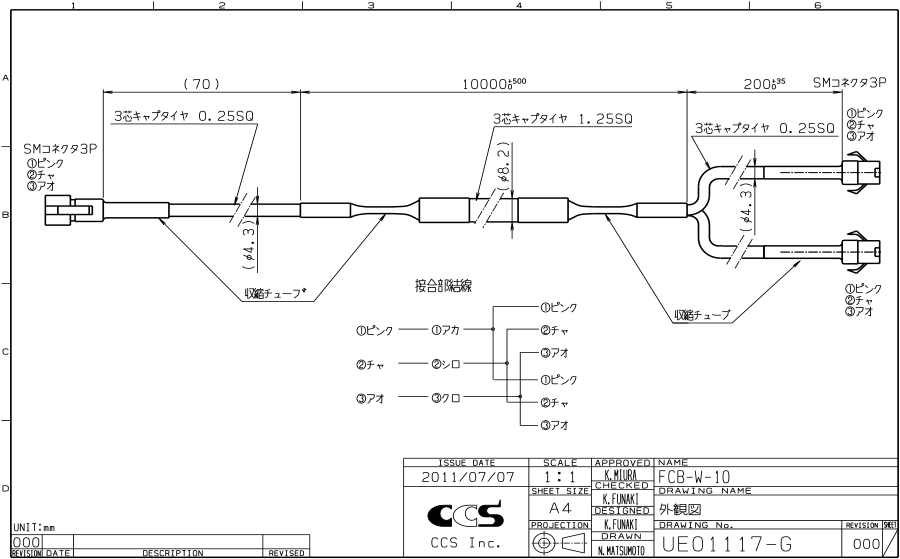

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog	PDF Drawing	DXF Drawing
