FCB-W-7

  • Custom Order

2-branch cable used to connect two 24 V input LED Light Units and a 24 V output Control Unit.
10-m length cable with 3-pin SM connectors.
One end of the cable branches into two 20 cm cables.
This cable is used to control multiple Light Units from one Control Unit (output connector).

Built to order

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Product Details

Cable length 7 m
Minimum bending radius (reference value) 49.2 mm
Connectors (Control Unit side) SM connector (3-pin, plug)
Connectors (Light Unit side) SM connector, 3-pin (socket) x 2
Conformed standards CE, UKCA、RoHS
Operating temperature and humidity Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Caution The light intensity might be unstable if you join cables.

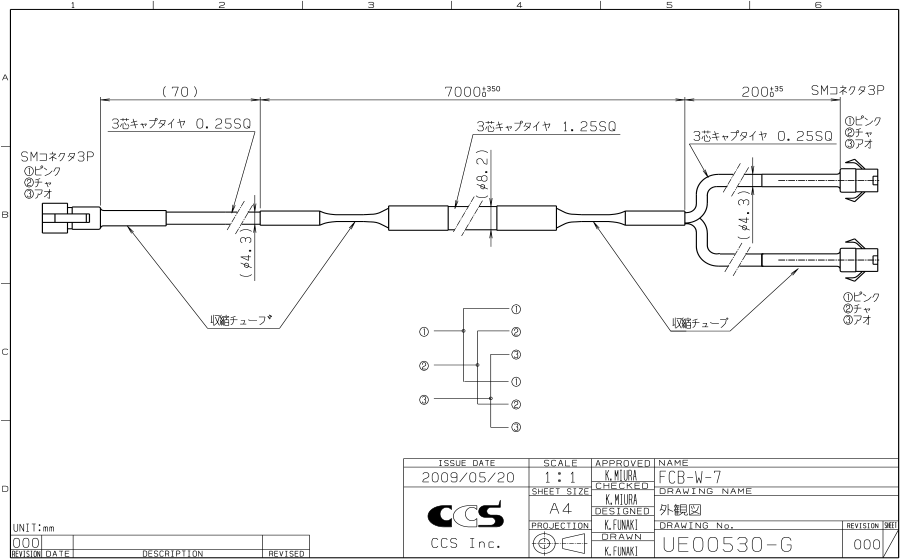

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog PDF Drawing DXF Drawing
