OPX-M75R

[Not available in Japan]
This Light Unit emits red light and measures 105 x 89 x 84 mm.

Add to Watch List

LED color	Red
Peak wavelength	630 nm
Dimensions	W 105 mm x D 89 mm x H 84 mm
Input voltage	12 VDC
Power consumption	18.0 W
Vibration resistance	10 to 55 Hz; amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
Shock resistance	Approximately 10 G, 3 times in each of the X, Y, and Z directions
Conformed standards	EMC (2014/30/EU), RoHS (2011/65/EU, MIIT Order No.32) / EN 61326-1:2013
Operating temperature and humidity	0 to 40°C/35 to 85% RH (no condensation)
Storage temperature and humidity	-20 to 70°C/35 to 95% RH (no condensation)
Weight	580 g
Material	Housing: Aluminum alloy and stainless steel Optical Parts: Glass and PMMA

Product Details Dimensions (mm) Options Cables Control Units Downloads

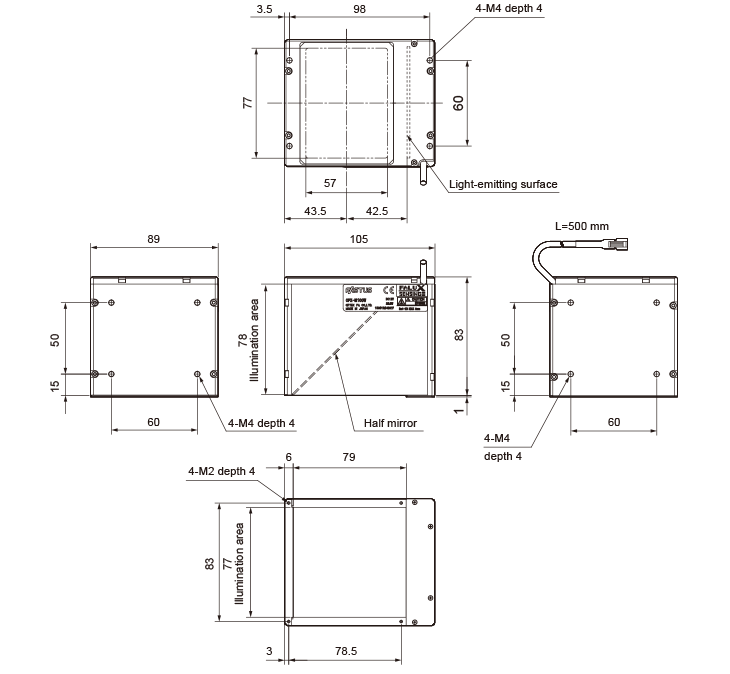

Dimensions (mm)

Options

TCSR-OPX-75

Cables

CB-2
CB-3
CB-5
RCB-2
RCB-3
RCB-5

Control Units

OPPD-30E

Downloads

General Catalog	DXF Drawing	User Manual	STEP Drawing
