LC-LFV3-100

Standard Product

For the LFV3-100-series Coaxial Lights and the LFV-PF-100-series High Power Strobe Lights.
Square type Light Control Film.
Improves parallerism of light and prevents wrapping around of light in the appearance inspection of workpieces when mounted on the Light Unit.
This enables sharp imaging of profiles.
One side is glossy and the other side is matte.
When you would like to reduce the glare, please put the matte side on the surface.

Add to Watch List

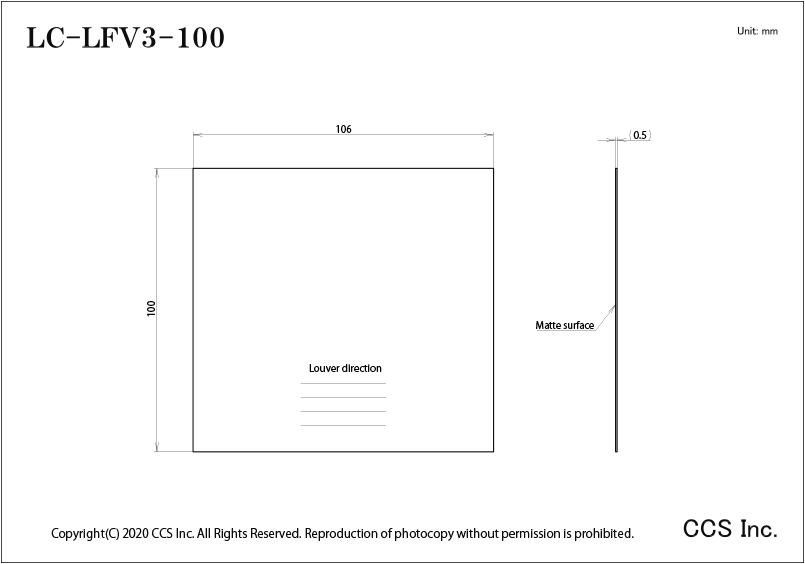

Dimensions	W 100 mm x D 106 mm x H 0.5 mm
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Weight	10 g max.
Accessories	Operation Guide
Caution	The shape or color of the LC film may change due to heat in the application environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. One side is glossy and the other side is matte. When you would like to reduce the glare, please put the matte side on the surface. * PDF and DXF drawings have been changed due to changes in LC film components. (July 2020)
Notes	Applicable products: LFV3-100(A), LFV-PF-100

Product Details Dimensions (mm) Downloads

Dimensions (mm)

Downloads

General Catalog	PDF Drawing	DXF Drawing	Pamphlet	Operation Guide	STEP Drawing
