FCB-10

Custom Order

Extension cable used to connect a 24 V input LED Light Unit and a 24 V output Control Unit.
10-m length cable with 3-pin SM connectors.

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Add to Watch List

Cable length	10 m
Minimum bending radius (reference value)	28.8 mm
Connectors (Control Unit side)	SM connector (3-pin, plug)
Connectors (Light Unit side)	SM connector (3-pin, socket)
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Weight	305 g max.
Caution	The light intensity might be unstable if you join cables.

Product Details Dimensions (mm) Downloads

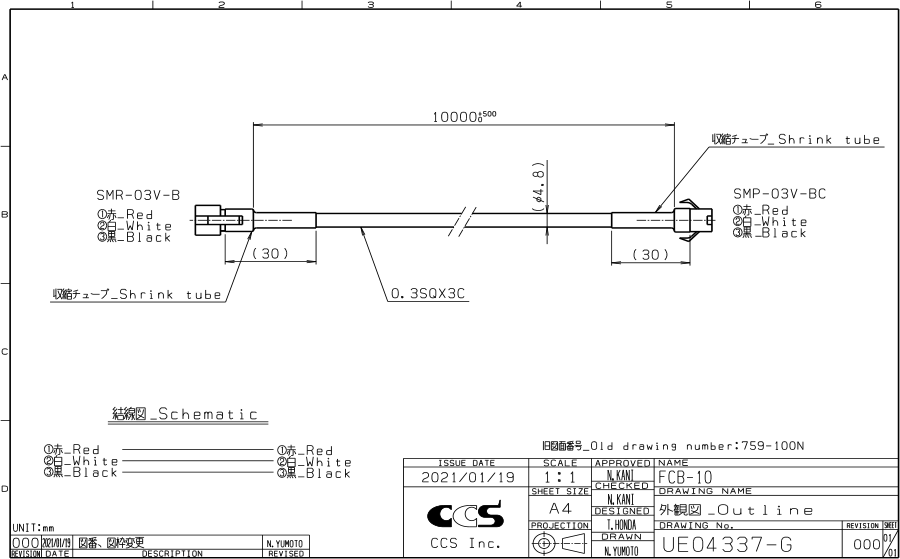

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog	PDF Drawing	DXF Drawing
