HLV2-3M-RGB-3W Series

Not available from "Dec/31/2021".
The recommended alternative series is HLV3-3M-RGB-4 Series.

This Light Source can reproduce the required emitting color through step-less independent adjustment of the light intensities, which are of the red (R), green (G), and blue (B) light source sections. This allows users to tailor the optimum illumination color to the workpiece.

Download Pamphlet PDF

Note: These lights require the Control Units provided with the output connectors for Spotlights.
The available Control Units vary depending on the input current of lights.
For details, refer to the "Power Supplies" column on the page describing each light model name.

Features

The red, blue, and green light illuminated from the dedicated light sources is blended inside this unit, achieving the illumination color perfect for the workpiece. Combine with a micro fiber head to support a wide variety of applications.

Example configuration

HLV2-3M-RGB-3W

Custom Order Example

We accept custom orders.

Please feel free to inquire.

  • Shape modifications
  • Brightness increases
  • Changes in wavelength, etc.

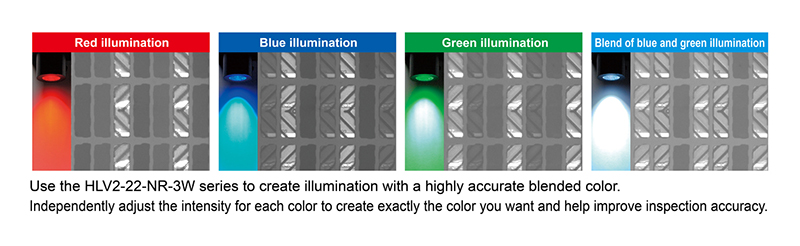

Imaging Example

Imaging of liquid-crystal color filter
