LN-EAA/LN-EBA Series (CCS AItec)

  • Light from the LEDs is scattered inside the light unit to evenly illuminate the whole surface of the workpiece,
    reducing overexposure and underexposure
  • 16 sizes each in 3 colors (red, white and blue) for a line-up with 96 models
  • Light emitting surface length up to 1,600 mm
  • Fan-less cooling system suitable for use in a clean room environment such as for printed circuit board production

*　”△” mark is the model name indicates the LED color with one of the following letters : SW(White), RD(Red), or BL (Blue).
*　”n” is the model name indicates the emitting surface length from 100 mm to 1,600 mm.
* 　This is the CCS AItec product. Warranty for this product differs from CCS standard lighting. Contact your local sales office for details.
CCSxAItec

Features of LN-EAA/LN-EBA

High-Illuminance Tunnel-Dome Lights
LN-EAA / LN-EBA Series

Dome Effect image

LED Color :white,red,blue

Fan-less image

CE image

RohS COMPLIANT image

LN-EAA series image

LN-EAA series
Opening width:50 mm

LN-EBA series image

LN-EBA series
Opening width:100 mm

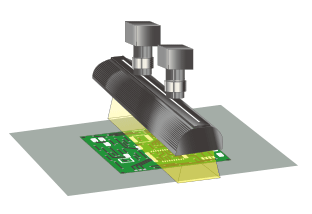

Imaging Example / Data

Appearance Inspection of Telephones

Conventional line light
Conventional line light image
Direct light on the uneven surface causes overexposure and underexposure, resulting in loss of detail.
LN-EAA-series light unit
LN-EAA_LN-EBA-series Light Unit image
Uniformly diffused light reduces overexposure and underexposure.

Other Applications

Inspection of Solder Resist on Printed Circuit Boards

Inspection of Solder Resist on Printed Circuit Boards image

Data

The data included is for reference only. Actual values may vary.

Illuminance Distribution
(LN-EAA-400SW)

Illuminance Distribution(LN-EAA Series) graph

Illuminance Distribution
(LN-EBA-400SW)

Change in Illuminance(LN-EAA Series) graph

Lineup

Model name*1 LED color Emitting surface length
(Dimension A)		 Camera window length
(Dimension B)		 (Dimension C) Full length
(Dimension L)		 Power consumption
（max.）		 Light cable connection Control Units Weight
LN-EAA-100△ Red
White
Blue		 100mm 65mm 21 mm 129mm 24V / 21 W FCB-AI-☐-C1*3 PSB3-30024
PSB4-30024-PEI
PSB4-60024-2-PEI		 418 g
LN-EAA-200△ 200mm 165mm 229mm 24V / 40 W FCB-AI-☐-C2*3 756g
LN-EAA-300△ 300mm 265mm 329mm 24V / 60 W 1,093g
LN-EAA-400△ 400mm 365mm 429mm 24V / 79 W 1,430g
LN-EAA-500△ 500mm 465mm 529mm 24V / 98 W 1,767g
LN-EAA-600△ 600 mm 565 mm 629 mm 24 V / 118 W 2,105 g
LN-EAA-700△ 700mm 665mm 729mm 24V / 137 W FCB-AI-☐-C3*3 2,442g
LN-EAA-800△ 800mm 765mm 829mm 24V / 157 W 2,779g
LN-EAA-900△ 900mm 865mm 43 mm 951mm 24V / 176 W FCB-AI-☐-C4*3 3,211g
LN-EAA-1000△ 1,000mm 965mm 1,051mm 24V / 195 W 3,549g
LN-EAA-1100△ 1,100mm 525 mmx 2pcs.*2 + 15 mm 1,151mm 24V / 215 W 3,886g
LN-EAA-1200△ 1,200mm 575 mmx 2pcs.*2 + 15 mm 1,251mm 24V / 234 W 4,223g
LN-EAA-1300△ 1,300mm 625 mmx 2pcs.*2 + 15 mm 1,351mm 24V / 254 W 4,560g
LN-EAA-1400△ 1,400mm 675 mmx 2pcs.*2 + 15 mm 1,451mm 24V / 273 W 4,898g
LN-EAA-1500△ 1,500mm 725 mmx 2pcs.*2 + 15 mm 1,551mm 24V / 292 W 5,235g
LN-EAA-1600△ 1,600 mm 775 mmx 2pcs.*2 + 15 mm 1,651 mm 24 V / 312 W FCB-AI-☐-C5*3 PSB4-60024-2-PEI 5,572 g
Model name*1 LED color Emitting surface length
(Dimension A)		 Camera window length
(Dimension B)		 (Dimension C) Full length
(Dimension L)		 Power consumption
（max.）		 Light cable connection Control Units Weight
LN-EBA-100△ Red
White
Blue		 100 mm 65 mm 21 mm 129 mm 24 V / 21 W FCB-AI-☐-C1*3 PSB3-30024
PSB4-30024-PEI
PSB4-60024-2-PEI		 599 g
LN-EBA-200△ 200 mm 165 mm 229 mm 24 V / 40 W FCB-AI-☐-C2*3 1,043 g
LN-EBA-300△ 300 mm 265 mm 329 mm 24 V / 60 W 1,486 g
LN-EBA-400△ 400 mm 365 mm 429 mm 24 V / 79 W 1,930 g
LN-EBA-500△ 500 mm 465 mm 529 mm 24 V / 98 W 2,374 g
LN-EBA-600△ 600 mm 565 mm 629 mm 24 V / 118 W 2,818 g
LN-EBA-700△ 700 mm 665 mm 729 mm 24 V / 137 W FCB-AI-☐-C3*3 3,261 g
LN-EBA-800△ 800 mm 765 mm 829 mm 24 V / 157 W 3,705 g
LN-EBA-900△ 900 mm 865 mm 43 mm 951 mm 24 V / 176 W FCB-AI-☐-C4*3 4,295 g
LN-EBA-1000△ 1,000 mm 965 mm 1,051 mm 24 V / 195 W 4,739 g
LN-EBA-1100△ 1,100 mm 525 mmx 2pcs.*2 + 15 mm 1,151 mm 24 V / 215 W 5,183 g
LN-EBA-1200△ 1,200 mm 575 mmx 2pcs.*2 + 15 mm 1,251 mm 24 V / 234 W 5,627 g
LN-EBA-1300△ 1,300 mm 625 mmx 2pcs.*2 + 15 mm 1,351 mm 24 V / 254 W 6,070 g
LN-EBA-1400△ 1,400 mm 675 mmx 2pcs.*2 + 15 mm 1,451 mm 24 V / 273 W 6,514 g
LN-EBA-1500△ 1,500 mm 725 mmx 2pcs.*2 + 15 mm 1,551 mm 24 V / 292 W 6,958 g
LN-EBA-1600△ 1,600 mm 775 mmx 2pcs.*2 + 15 mm 1,651 mm 24 V / 312 W FCB-AI-☐-C5*3 PSB4-60024-2-PEI 7,402 g
  • *1　”△” mark is the model name indicates the LED color with one of the following letters : SW(White), RD(Red), or BL (Blue).
  • *2　The light unit has two camera windows. Please refer to the dimension diagrams shown below.
  • *3　☐ : Cable length. (☐ = 2, 3, 5, 10)
  • * The Light Units of both series conform to the safety standard EN 62471.
  • * Warranty for this product differs from CCS standard lighting. Contact your local sales office for details.

Dimensions

LN-EAA-n / LN-EBA-n Series (n = 100 to 1,600)

(Unit: mm)

LN-EAA-n / LN-EBA-n Series image

  • *2 This dimension is applicable only when n ≧ 1100; the light unit has two camera windows.
  • *4 Refer to download materals for dimensions details
  • ★ Please see the line up for size details

Light Cable Connectors / Option Cables

Light Cable Connectors

Emitting surface length(mm) Light cable connection - pin Assignment Light cable connection Extension cables Control Units
100 SMR-02V-B 2-pin SM connector
2-pin SM connector		 FCB-AI-☐-C1(□ =2, 3, 5, 10)
FCB-AI-☐-C1(□ =2, 3, 5, 10)		 PSB3-30024
PSB4-30024-PEI
PSB4-30024-PEI
PSB4-30024-PEI
PSB4-60024-2-PEI
PSB4-60024-2-PEI
200～600 SMR-08V-B 8-pin SM connector
8-pin SM connector		 FCB-AI-☐-C2(□ =2, 3, 5, 10)
FCB-AI-☐-C2(□ =2, 3, 5, 10)
700～800 PRC05-P12M1 12-pin metal connector
12-pin metal connector		 FCB-AI-☐-C3(□ =2, 3, 5, 10)
FCB-AI-☐-C3(□ =2, 3, 5, 10)
900～1,500 PRC05-P12M1 12-pin metal connector
12-pin metal connector		 FCB-AI-☐-C4(□ =2, 3, 5, 10)
FCB-AI-☐-C4(□ =2, 3, 5, 10)
1,600 12-pin metal connector
12-pin metal connector		 FCB-AI-☐-C5(□ =2, 3, 5, 10)
FCB-AI-☐-C5(□ =2, 3, 5, 10)		 PSB4-60024-2-PEI
PSB4-60024-2-PEI

Option Cables

Extension cables(* Cable length = ☐ meters)
FCB-AI-☐-C1
(□ = 2, 3, 5, 10)
FCB-AI-☐-C1

FCB-AI-□-C1 page

 FCB-AI-☐-C2
(□ = 2, 3)
FCB-AI-☐-C2

FCB-AI-□-C2 page

 FCB-AI-☐-C2
(□ = 5, 10)
FCB-AI-☐-C2

FCB-AI-□-C2 page
FCB-AI-☐-C3
(□ = 2, 3)
FCB-AI-☐-C3

FCB-AI-□-C3 page

 FCB-AI-☐-C3
(□ = 5, 10)
FCB-AI-☐-C3

FCB-AI-□-C3 page

 FCB-AI-☐-C4
(□ = 2, 3)
FCB-AI-☐-C4

FCB-AI-□-C4 page
FCB-AI-☐-C4
(□ = 5, 10)
FCB-AI-☐-C4

FCB-AI-□-C4 page

 FCB-AI-☐-C5
(□ = 2, 3)
FCB-AI-☐-C5

FCB-AI-□-C5 page

 FCB-AI-☐-C5
(□ = 5, 10)
FCB-AI-☐-C5

FCB-AI-□-C5 page
Flying leads cables
FCB-A-☐-SM2-FL 2-pin SM connector
(□ = 2, 3, 5, 10)
FCB-A-☐-SM2-FL

FCB-A-□-SM2-FL page

 FCB-A-☐-SM8-FL 8-pin SM connector
(□ = 2, 3, 5, 10)
FCB-A-☐-SM8-FL

FCB-A-□-SM8-FL page

 FCB-A-☐-ME12-FL 12-pin metal connector
(□ = 2, 3, 5, 10)
FCB-A-☐-ME12-FL

FCB-A-□-SM12-FL page
