HLV2 Series

Not available from "Dec/31/2021".
The recommended alternative series is HLV3 Series L-Type.

The lightweight and compact Spot Light achieved high output through its unique optical design.

HLV2-22: Standard model
HLV2-14: Compact model
HLV2-22-3W: High output model

The HLV2 series provides a selection to match your usage
environment and application.

Download Pamphlet PDF

Note: These lights require the Control Units provided with the output connectors for Spotlights.
The available Control Units vary depending on the input current of lights.
For details, refer to the "Power Supplies" column on the page describing each light model name.

Features

Lineup with selection to match your needs

The HLV2 series provides a selection to match your usage environment and application. The LED color has a lineup of red, white, blue, and green.

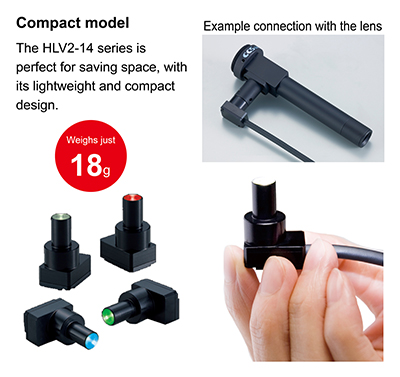

HLV-14 series, with a lightweight and compact design

Spot Lights that achieve high output

The lightweight and compact Spot Light achieved high output through its unique optical design.

HLV2-22-3W series, a high output model

Lineup offering a selection to match your needs

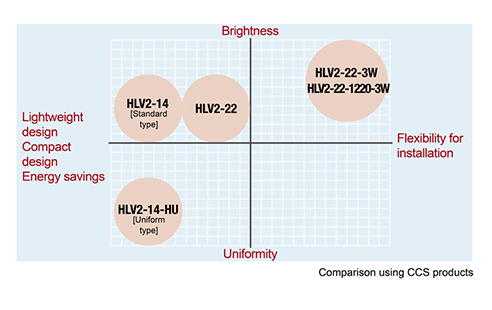

HLV2 series evaluation chart

HLV2 series evaluation graph

Example configuration

Revised the optical system to increase the emitting efficiency for this high output Spot Light.

HLV2 series

Characteristics/Data

Comparison of data for the HLV2-14 series

LED properties

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

Please contact your CCS sales representative.

Imaging Example

Imaging of 2-dimensional code

Description Code reading
Workpiece 2-dimensional code
New lighting HLV2-22RD-3W

Imaging of an alignment mark

Description Positioning
Workpiece Alignment mark
Light Unit in use HLV2-22SW-3W
