LB-600X150SW / LB-600X150BL / LB-600X150RD

HOME > Products Information > Machine Vision Applications > Bar (Area) > LB Series > LB-600X150SW / LB-600X150BL / LB-600X150RD

LB-600X150SW / LB-600X150BL / LB-600X150RD

Standard Product

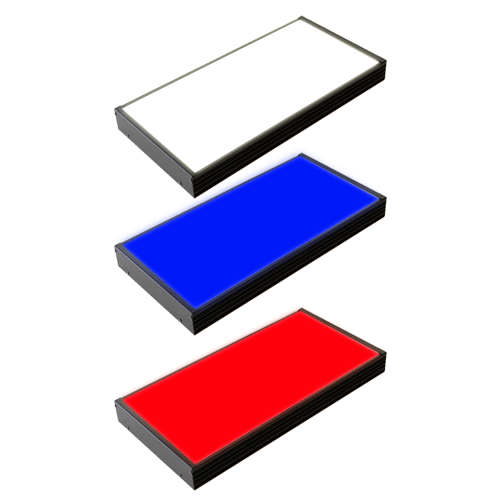

LB Series Diffused Bar Lights
Measures W 621.2 mm x D 161 mm x H 33.6 mm,
the light-emitting surface measures 600 x 150 mm.
Available in 4 wavelengths: white (LB-600X150SW), blue (LB-600X150BL), and red (LB-600X150RD ).

Add to Watch List

LED color	LB-600X150RD: Red LB-600X150SW: White LB-600X150BL: Blue
Correlated color temperature	LB-600X150SW: 6300 K typ.
Peak wavelength	LB-600X150RD: 630 nm typ. LB-600X150BL: 467 nm typ.
Dimensions	W 621.2 mm x D 161 mm x H 33.6 mm
Input voltage	24 VDC
Power consumption	161 W
Polarity & signal	1, 2, 3: (+)/4, 5, 6: (-)/7: NC
Cable length	300 mm
Case material	Aluminum alloy, steel sheet
Input connector	SRCN1A16-7P
Conformed standards	CE, UKCA, RoHS IEC 624711 LB-600X150RD : Exempt LB-600X150SW : Exempt LB-600X150BL : Exempt
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation)
Cooling method	Natural air cooling
Weight	2.31 kg
Accessories	User Manual
Notes	LB-600X150SW / LB-600X150BL / LB-600X150RD is made to order. Please contact your sales representative for details.

Product Details Dimensions (mm) Control Units Cables Options Downloads

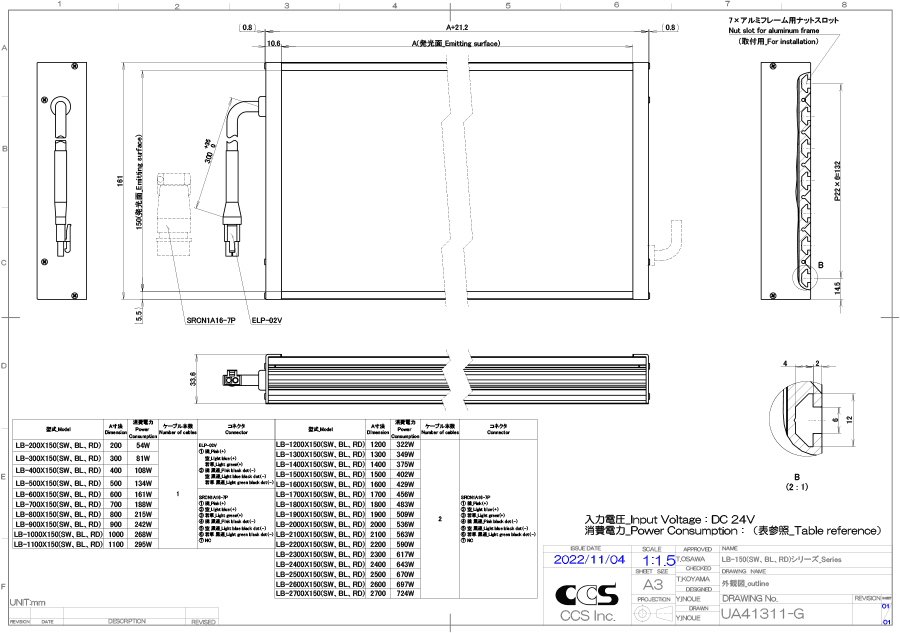

Dimensions (mm)

* Click to enlarge image.

Control Units
Control Unit Guide(PDF)

PSB3-30024
PSB4-30024-PEI
PSB4-60024-2-PEI

Cables

FCB-2-1.25SQ-ME7
FCB-3-1.25SQ-ME7
FCB-5-1.25SQ-ME7
FCB-10-1.25SQ-ME7
FCB-20-2.0SQ-ME7

Options

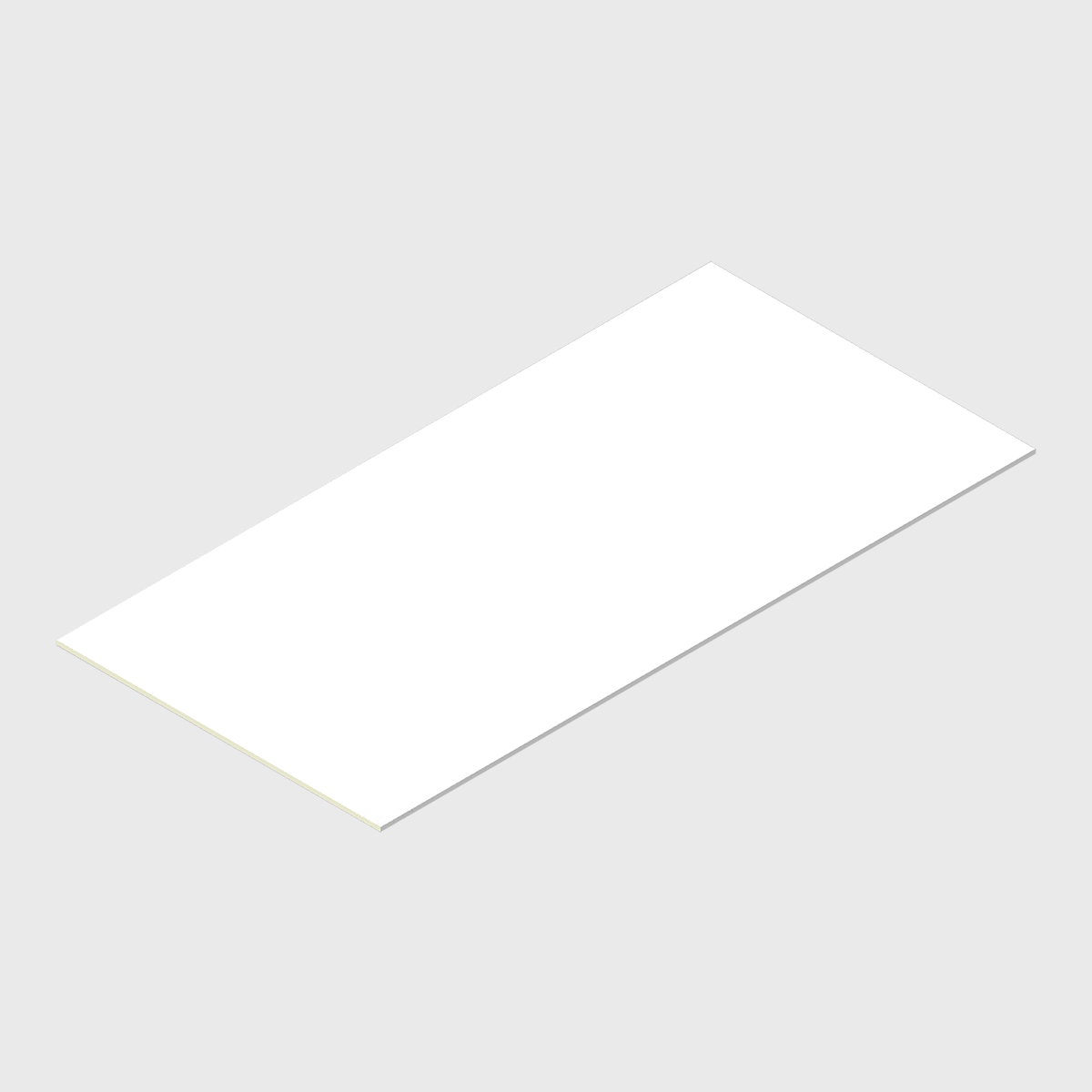

DF-LB-nX150
PL-LB-nX150-HO

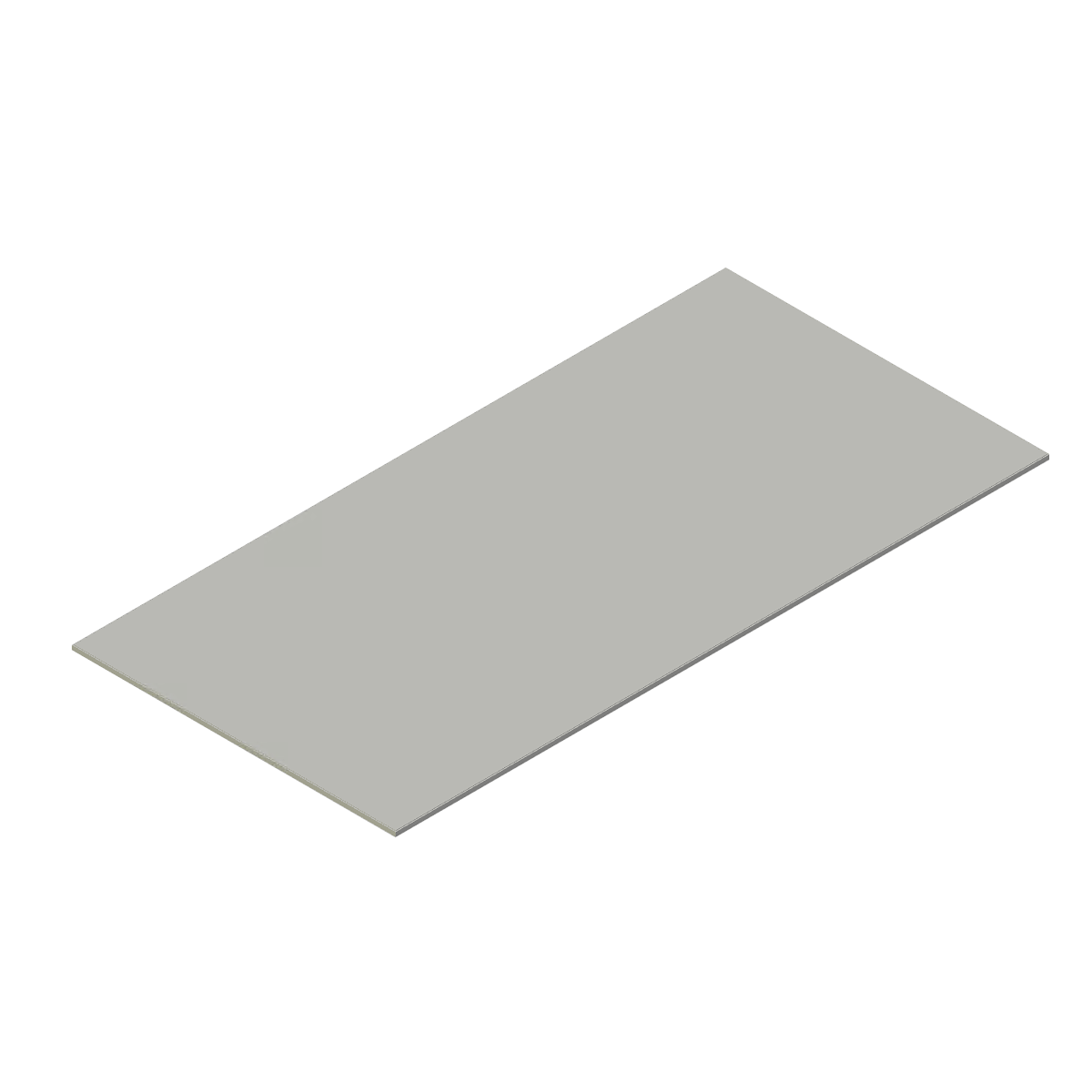

PL-LB-nX150-VE
PR-LB-nX150

Downloads

General Catalog	PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info
