PD3-5024-4-EIK｜CCS INC.

HOME > Products Information > Power Supplies > Digital Control Units > PD3 Series > PD3-5024-4-EIK

PD3-5024-4-EIK

Custom Order

This digital control unit with keep-alive function can be used for LED light units with an input voltage of 24 V within a total power consumption of 46 W.
Connection with the HLV3/HLV2 series spot lights is also available.
This Control Unit operates on a 100 to 240 VAC input and measures 197 x 82.6 x 120 mm (width x depth x height). External control through Ethernet communications.

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Add to Watch List

Dimensions	W 197 mm x D 82.6 mm x H 120 mm
Applicable Light Unit (output ratings)	Light Units with 24 VDC input, HLV3/HLV2 series (Spot Light) Total for 4 channels: 46 W
Number of channels	4 channels
Lighting method	Constant/Strobe lighting
Drive method	24V LIGHT connectors: Constant-voltage system, HLV LIGHT connectors: Constant-current system
Intensity control method	24V LIGHT connectors: PWM control and lighting time control, HLV LIGHT connectors: Variable-current control
PWM frequency	125 kHz
Input voltage	100 to 240 VAC (+10% -15%)
Frequency	50/60 Hz
Power consumption	70 VA
Output voltage	24 VDC
Output current	Total for 4 channels: 1.91 A
Inrush current	15 A (at 100 VAC), 30 A (at 200 VAC) from a cold start
Intensity control	Manual: 256-step using the front setting switch External: Command input via TCP/IP or UDP/IP communication
Error detection display	Digital display on the front-panel; OCP: Overcurrent error, EFN: Fan Stop Error, and EID: ID error (HLV3/HLV2-series Spot Lights only)
Error detection output	Command sent when overcurrent output is detected.
Over current protection	Yes
Output connector	SMP-03V-BC x 8
External control connector	Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins For setting the light intensity/mode: RJ-45 connector
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Forced cooling
Weight	1,200 g
Material	Aluminium, ABS
Accessories	2m long 3-pin power cord with ground terminal x1 Base Brackets x1 set Instruction Guide x1
Notes	Keep-alive functions monitor the validity of the connection of the machine to the network, wherein to prevent the connection from dropping, a signal is periodically sent between machines.
Program	[Sample Program] Sample programs are available. See the Options tab.

Product Details Dimensions (mm) Options Downloads

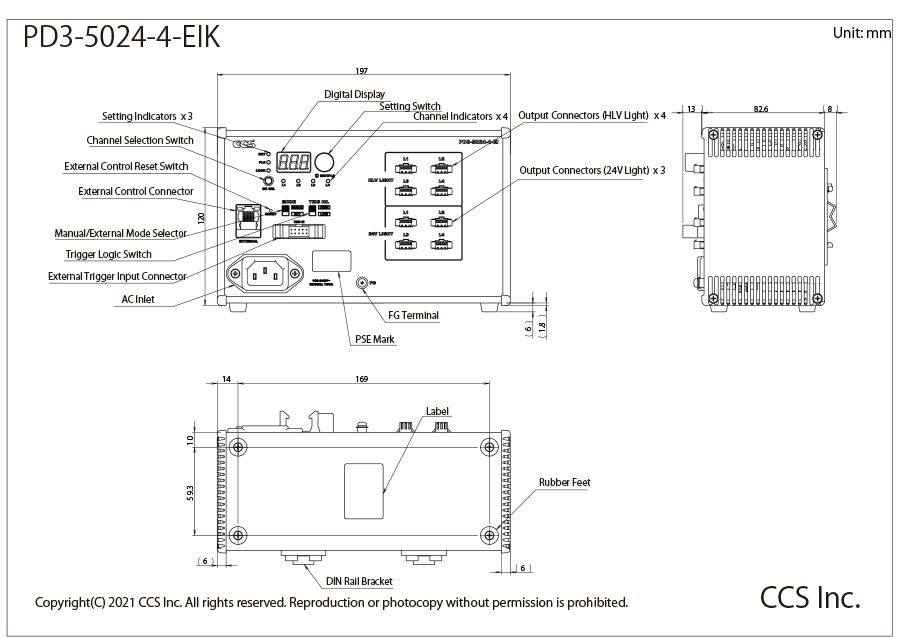

Dimensions (mm)

* Click to enlarge image.

Options

シーシーエス電源用サンプルプログラム Sample Program for CCS Controllers
電源用イーサネット通信サンプルプログラム(VC#,VB) Ethernet Sample Program (VC#,VB)
電源用イーサネット通信サンプルプログラム(Python) Ethernet Sample Program (Python)

Downloads

General Catalog	PDF Drawing	User Manual
