HPR2-75RD-HFCT / HPR2-75SW-HFCT / HPR2-75BL-HFCT / HPR2-75FC-HFCT

Custom Order

HPR2-HFCT Series half ring light with outer diameter 91 mm.
Available in 4 LED emission colors: red (HPR2-75RD-HFCT), white (HPR2-75SW-HFCT), blue (HPR2-75BL-HFCT), and full color RGB (HPR2-75FC-HFCT).

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Custom orders are available to change the size, emission color, cable length, etc.

Add to Watch List

LED color	Red, White, Blue, RGB (Red, Green, Blue)
Dimensions	See Dimensions tab page
Input voltage	24 VDC
Power consumption	Red: Contact us White: 7.6 W max. Blue: Contact us RGB: Contact us
Cable length	0.3 m
Conformed standards	RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Caution	The full-color type (HPR2-75FC-HFCT) has three connectors. Use a 3-channel control unit if controlling intensity separately for each color. Cannot be used with the strobe control unit (overdrive mode).

Product Details Dimensions (mm) Downloads

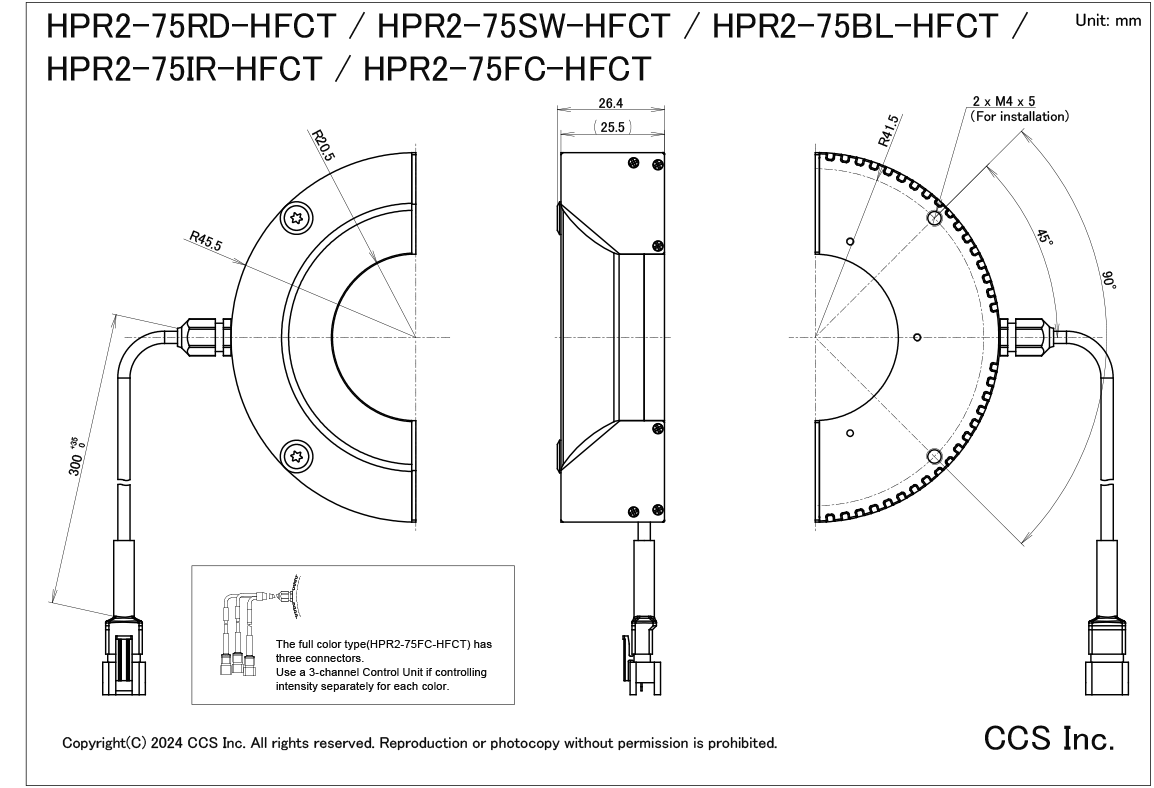

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog	PDF Drawing
