BCBL-120X120W / BCBL-120X120R / BCBL-120X120B

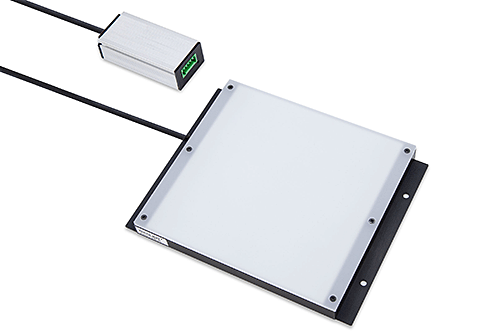

BCBL-120X120x (x=W, R, B) plug-and-play bar light connects to Basler ace U and ace L camera models. Control lighting mode, lighting time, and dimming of lighting through the camera software.
The LED emission colors are red, blue and white, and the emission surface size is 120 x 120 mm.
"" class=""icn-catch marT2"">

Product Details

LED color Red , Blue , White
Peak wavelength Red 635 nm, Blue 470 nm, White 6000 K
Dimensions W 123 mm x D 154 mm x H 15 mm
Input voltage 24 VDC ( ± 10% )
Power consumption Red 15 W, Blue 15 W, White 15 W
Conformed standards RoHS, CE, UKCA
Operating temperature and humidity Temperature: 0 to 40℃ (Light intensity may vary due to the change in ambient temperature) Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation) (Should not be frozen, condensed or exposed to the rapid change in temperature)
Storage temperature and humidity Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method Natural air cooling
Weight 270 g
Accessories User Manual

Controller Details

Connectors Controller part: Applicable Terminal Block Connector: Wurth Elektronik WR-TBL series 691381000006) Wurth Elektronik WR-TBL series 691382010006
Drive method Constant-voltage system
Intensity control method PWM control
PWM frequency 100 kHz
Cable length Light cable: 500 mm Camera cable: 3 m max.
CE marking EMC Standard: Conforms to EN61000-6:2019、EN61000-6-:2007+A1:2011
Case material Aluminum alloy, Resin

Dimensions (mm)

* Click to enlarge image.

Options

  • BC-CBL-3

Downloads

PDF Drawing DXF Drawing User Manual STEP Drawing
