CU-LNSP2-400-GL

Standard Product

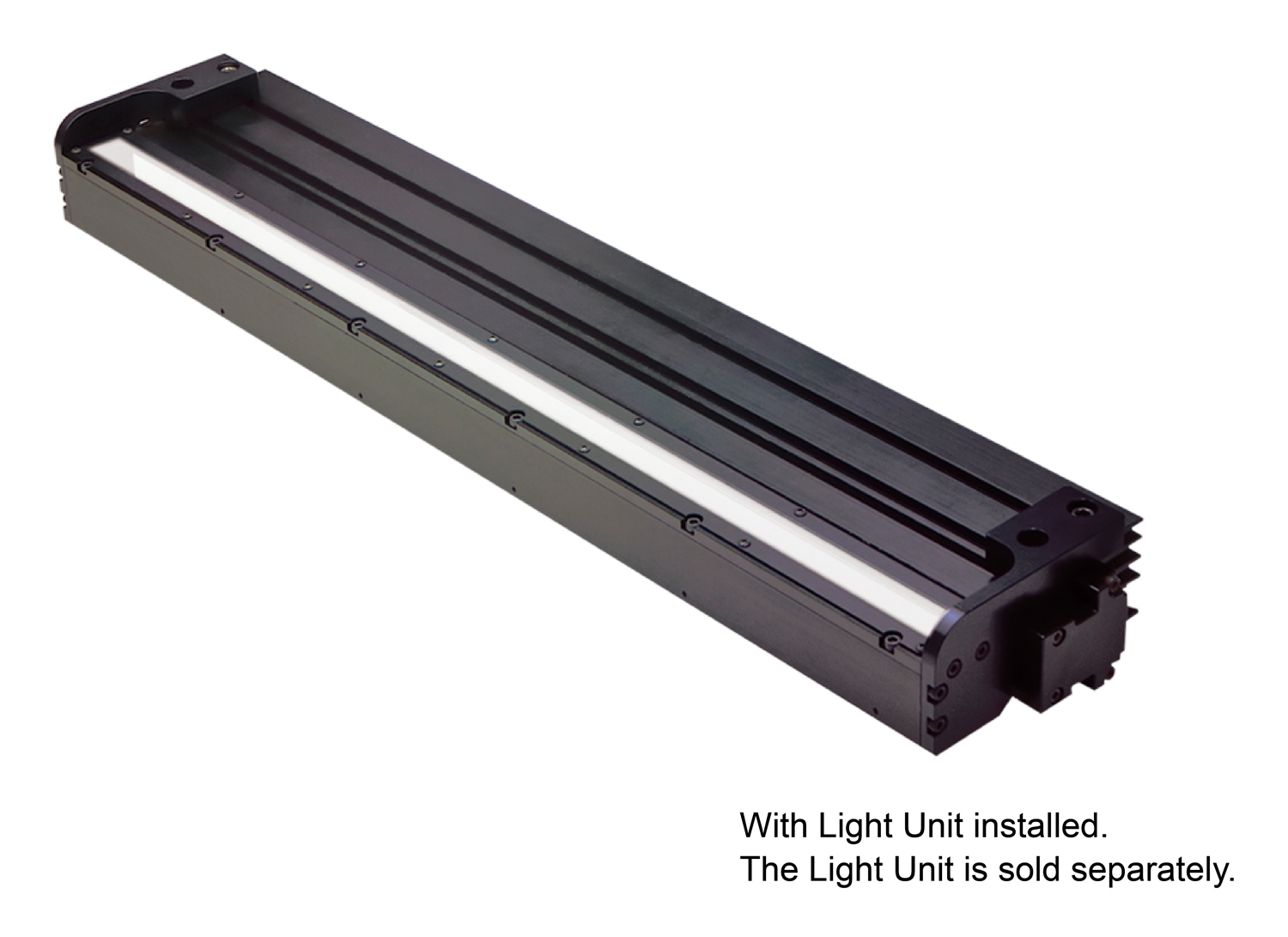

Coaxial Unit for use with the LNSP2-400SW (-NDF) Line Light.
Enables coaxial illumination with high output.

Add to Watch List

Dimensions	W 412 mm x D 97 mm x H 54 mm
Case material	Aluminum alloy, Glass
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Weight	550 g max.
Accessories	Operaton Guide, Mounting nuts (M5) x 4, Mounting screws (M5) x 4
Notes	Coaxial Unit for use with the LNSP2-400SW (-NDF) Line Light.

Product Details Dimensions (mm) Downloads

Dimensions (mm)

* Click to enlarge image.

Downloads

PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info	3D-CAD
