At a low angle, these Ring Lights can be used to highlight and image the characters and scratches in a dark field.
At a high angle, these Ring Lights can be used to uniformly image the entire workpiece in a bright field.
CCS can offer various lighting methods according to the applications.
- Illumination Structure
- The light from perpendicularly arranged LEDs is transmitted through a light-guiding plate to illuminate the center of the workpiece with uniform diffused light from a low angle.
Provides direct light at a low angle from an angled emitting part.
These waterproof Ring Lights ensure the brightness with condensing lenses. IP67 compliance. Adopting an M12 connector.
Download Pamphlet PDF
- Illumination Structure
- Convergent waterproof Ring Light that ensures brightness with a convergent lens.
Emitting surface with LEDs arranged in straight lines radiate direct light.
High flexibility in installation is also provided.
Download Pamphlet PDF
- Illumination Structure
- LEDs are arranged at high-density on a single flat circuit board and the object can be illuminated from any angle as desired.
These Bar Lights have a built-in controller to switch between overdrive lighting and constant lighting, and are applicable for long-distance irradiation.
Download Pamphlet PDF
- Illumination Structure
- This Bar Light has a built-in controller. Switching to overdrive lighting enables a brighter light intensity. Large workpiece is handled very well with long-distance rradiation.
High Power LED Lighting HLDL3 Series.
Bar lights for long-distance and wide-area irradiation.
Suitable for various applications such as large workpieces, long-distance illumination, and robot picking inspections.
- Up to 1.7 times brighter than the HLDL2 Series* to support faster inspection speed and higher resolution.
- The lineup has been expanded to 144 models for a wider range of applications.
- 12 sizes from 150 mm to 1800 mm (in 150 mm increments).
- Available in 4 wavelengths: red, white, blue, and infrared.
- In addition to wide and narrow light directivity, a medium directivity-type is now available.
- The housing is lighter and more compact than the current product for mounting on robot arms and inspection equipment.
- Custom orders are also possible such as different wavelengths and overdrive.
(*Wide type: 1.1 times greater than HLDL2, narrow type: 1.7 times greater)
LB Series Diffused Bar Lights
Multipurpose x Multiple Models 338 Models Total
A wide variety of lighting options are available to match the inspection environment
* Low-angle Light Units perfect for square workpieces:
detecting the outline of corners and preventing glare.
* Achieved high output up to double that of conventional products.
* 8 sizes and a total of 24 models.
* Installation holes on the top and lateral surfaces increase installation flexibility.
Increased brightness better than that of the TH series. These Light Units are applicable to high-speed production lines to enhance productivity.
Download Pamphlet PDF

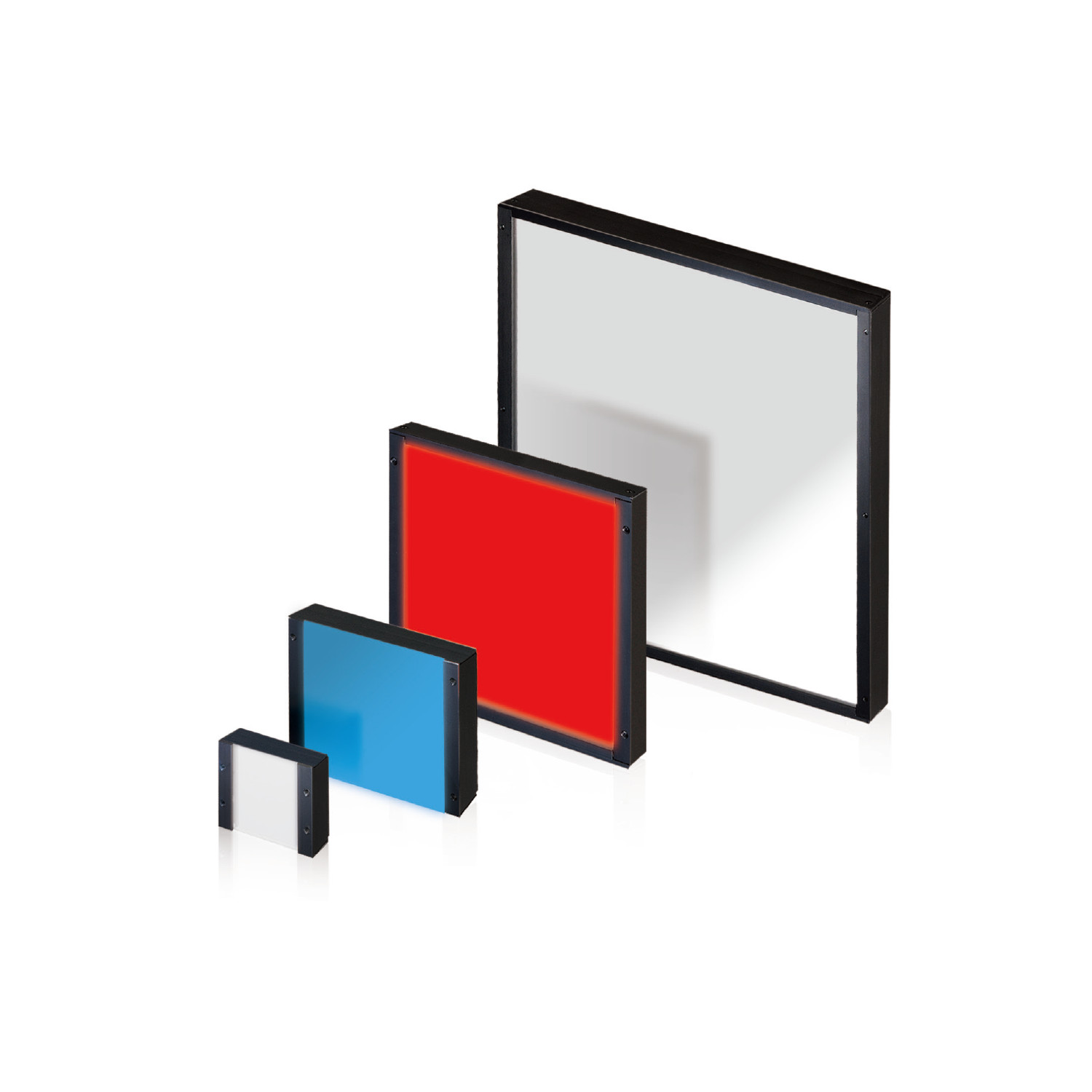

Light from the LEDs that are arranged around the periphery of the square shaped light-guiding diffusion plate passes through the plate and produce diffused illumination. Thin-structure design of 6 mm min. (for the LFL-612, LFL-1012, and LFL-50) enables space-saving installation.
- Illumination Structure
- LEDs are embedded around a quadrangular light-guiding diffusion plate. Uniform, diffused light is radiated from a flat light-emitting surface.
[Not available in Japan]High-accuracy contour extraction and
foreign object detection of transparent and metal workpieces
LDR2-32RD2
- Standard Product
Add to Watch List
LDR2-32SW2
- Standard Product
Add to Watch List
LDR2-32BL2
- Standard Product
Add to Watch List
LDR2-32GR2
- Standard Product
Add to Watch List
LDR2-42RD2
- Standard Product
Add to Watch List
LDR2-42SW2
- Standard Product
Add to Watch List
LDR2-42BL2
- Standard Product
Add to Watch List
LDR2-42GR2
- Standard Product
Add to Watch List
LDR2-50RD2
- Standard Product
Add to Watch List
LDR2-50RD2-WD
- Standard Product
Add to Watch List
LDR2-50SW2
- Standard Product
Add to Watch List
LDR2-50BL2
- Standard Product
Add to Watch List
